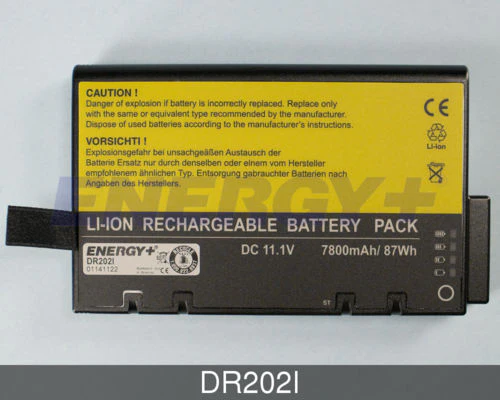

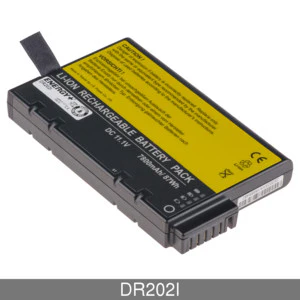

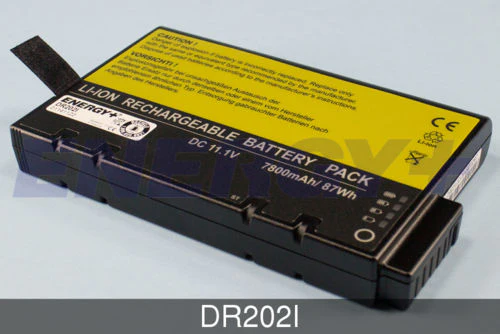

Li-Ion 11.1V Battery Pack DR202I for OEM and Aftermarket Applications

• Lithium-Ion (Li-Ion) rechargeable smart battery.
• Designed and assembled in U.S.A.
• Ships fully tested, programmed, calibrated, and ready to use.
• SMBus smart circuit using Texas Instruments BQ40Z50 chipset.
• Integrated LED fuel gauge indicator.
• Built with high performance cells, capable of 5A maximum discharge rate.
• Safety features include primary and secondary circuit protection.
• Injection molded and sonic welded UL94 rated ABS plastic case.
• Warranty: 1 year

Specification

• Nominal Voltage:             10.8V
• Nominal Capacity:           7800mAh
• Power Rating:                   84.24Wh
• Max Charge Current:       5.0A
• Max Charge Voltage:       12.60V
• Max Discharge Current:   5.0A
• Operating Temperature:   0’C to 45’C (charge) -20’C to 60’C (discharge)
• Storage Temperature:  -20’C to 60’C (max) -20’C to 25’C (recommended)

 Assembled in the USA



Replaces:



1588-3366 234960-001 503430-501 503468-001 504030-027 6012P 90-0100-0020 9760035 989803144631 989803144631 BA-9250 BA9250 BAT-ST202S CE-BL01 CEBL01 DR-202I DSO002576 DSO002576-00 GPDR202 IP202 LDU-202 LDU202 Li202S Li202S-60 Li202S-66 Li202S5400 LI202SX-7200 LIP9020B ME202AF ME202AH ME202C ME202CJ NBP001197 NBP001197-00

NBP001254 NBP001254-00 NBP001276 NBP001276-00 NBP001280 NBP001280-00 NBP001285 NBP001285-00 NBP001305-00 NI2020 SB200L SM202 SMP-202S SMP2020 SMP2020D SMP2020P SMP202S SSB-500EL SSB-650ELS SSB-830ELS SSB-830ELS/E SSB-950ELS SSB-950ELS/E SSB-P28LS6 SSB-T10CLS SSB-T10CLS/E SSB-V20CLS SSB-V20CLS/E SSB-V20KLS SSB500EL SSB650ELS STD202S TH202

Type:	Li-Ion
Voltage:	11.1
Capacity:	7800 mAh
Color:	Dark Grey
Size:	5.88" x 3.50" x .78"

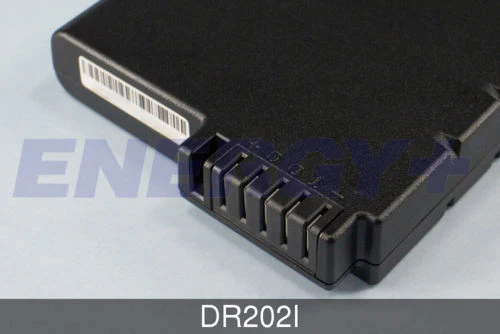

Contacts:	5 Position Connector
